Dassault Mercure 100 — 3D CAD Restoration Project (2025 Edition)

This project is a high-fidelity 3D CAD reconstruction of the Dassault Mercure 100, a short-range French airliner that has become one of the rarest commercial aircraft in aviation history. The model is built from scratch using archival drawings, scattered technical references, and photographic measurement techniques.

The goal is simple:

1. To digitally preserve an aircraft whose physical presence has nearly vanished.
2. This CAD is intended for aviation enthusiasts, model builders, flight-sim modders, engineers, and anyone who wants to explore the geometry of an uncommon airliner that disappeared far too quickly.

The model is rebuilt from the ground up using:

• Surviving brochure diagrams
• Engineering sketches
• The few remaining technical references available publicly
• The goal is not just to “model” the aircraft — but to digitally revive an aircraft that almost vanished from aerospace history.
• Two engines attached are included based on original planes:
• JT-8D series
• Both are modeled with smooth, aerodynamic CAD lofts suitable for visualization or engineering workflows.

The Dassault Mercure 100 was Dassault’s bold attempt to break into the commercial jetliner market during the 1970s. It entered a world dominated by the Boeing 737 and the Douglas DC-9—tough competitors even for military aviation legends like Dassault.

This aircraft is imagined as:

• The entire model is engineered in SolidWorks using true NURBS lofted surfaces, giving it wind-tunnel-grade smoothness and precise aerodynamic form.
• Every external surface — wings, fuselage, nacelles, empennage — is crafted using parametric engineering lofts suitable for 3D printing, rendering, CFD study, and RC design.

What You Can Do With These Packs

Depending on the pack you choose, you can:

• 3D print the aircraft
• Build RC laser-cut models
• Perform CAD or CFD analysis
• Render it in Blender
• Create posters, stickers, and merch
• Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

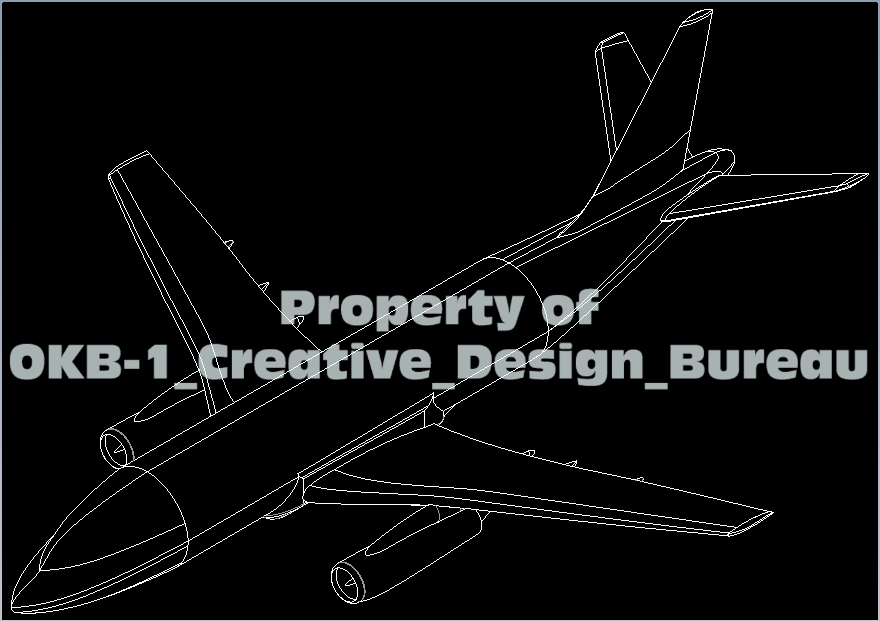

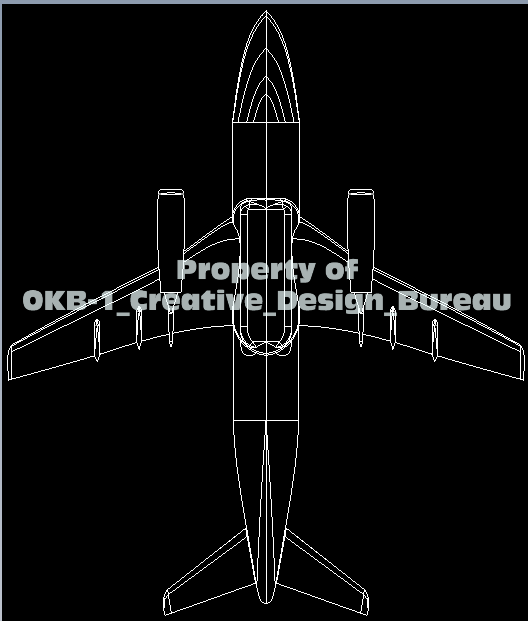

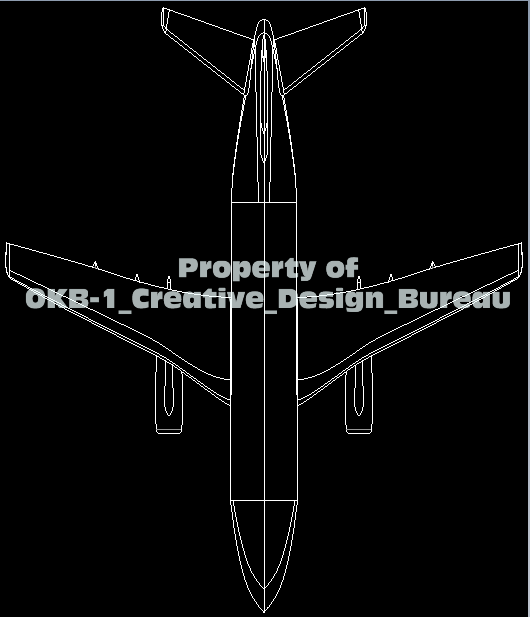

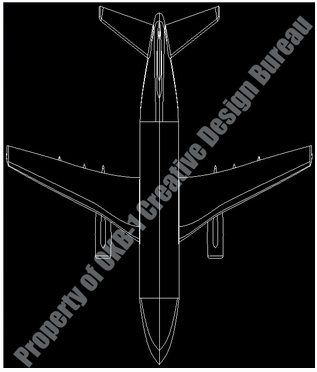

Pack D — Merchandise Art Pack (DXF + DWG)

Includes:

• Clean line-art views:
• 3-side view (top, side, front) + Bonus 1-side view (belly)
• Isometric view
• Provided in DXF + DWG

High resolution, ready for:

• T-shirt designs
• Posters
• Stickers
• Wallpapers
• Classroom material

Perfect for: Artists · Merch stores · Classroom projects · Aviation fans

Pack A — 3D Printing Pack (STL Only)

https://creativedesigns840.gumroad.com/l/atkoi

Includes:

• High-resolution STL of the aircraft
• Clean watertight mesh suitable for resin or FDM printing
• 3MF file for layout reference
• Aerodynamic, smooth loft surfaces just like wind tunnel models
• Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
• Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists

Pack B — RC Maker Pack (DXF + 3MF)

https://creativedesigns840.gumroad.com/l/zrjgpy

Includes:

• Full DXF cross-section slices (wing + fuselage) for laser cutting
• Up to ~48 fuselage stations
• Wing rib sections
• Clean orthographic section cuts
• 3MF file for RC layout reference

Perfect for: RC aircraft builders · Laser-cut foam/balsa makers · Workshops

Pack C — Engineering Pack (STEP + IGES +CATIA )

https://creativedesigns840.gumroad.com/l/shlgju

Includes:

• Full STEP file (solid bodies + surfaces)
• Full IGES file (solid bodies + surfaces)
• Full CATIA file (solid bodies + surfaces)
• Complete aircraft with precise NURBS lofts
• Suitable for:
• SolidWorks
• Fusion 360
• CATIA
• Creo
• Siemens NX
• Engineering-grade geometry
• Perfect for editing, CFD pre-processing, and derivative design work
• 3MF file for layout reference included
• Both engine options included

Perfect for: Engineers · Students · Aerospace researchers

Pack E — Blender Artist Pack (OBJ + STEP)

https://creativedesigns840.gumroad.com/l/stast

Includes:

• OBJ file exported from CAD
• Ultra-smooth wind-tunnel-grade geometry
• STEP file included for those who want to re-export their own mesh
• Ready to import into:
• Blender
• Cinema 4D
• Maya
• ZBrush

Note: Untextured, raw CAD mesh. Perfect for sculpting, kitbashing, rendering, or custom livery painting.

Perfect for: Blender users · Render artists · Hard-surface kitbashers

Ultimate Pack

Includes EVERYTHING in Packs A–E

- STL + 3MF 3D Print model

- DXF Cross Section Laser Cut RC

- STEP 214 + IGES + CGR Engineering model

- DXF + PDF + DWG Merch Poster

- OBJ + STEP + 3MF + GLB + GLTF Render Artist

Preserving that in 3D form isn’t just cool — it’s a way of keeping alive a forgotten experiment in aviation history.
