IPTN N-2130 Wallpaper Printable Merchandise (DXF + DWG + PDF) Pack D (CFM-56 & PW-6000 version)

IPTN N-2130 — 3D CAD Restoration Project (2025 Edition)

This is a full 3D CAD restoration of the IPTN N-2130, the ambitious Indonesian 100–130-seat jetliner project from the 1990s that never reached prototype flight. The model is rebuilt from the ground up using:

Surviving brochure diagrams
IPTN promotional mockups
Engineering sketches
The few remaining technical references available publicly
The goal is not just to “model” the aircraft — but to digitally revive a project that almost vanished from aerospace history.
Two engine configurations are included based on IPTN’s original proposals:
CFM56-5 series
PW6000 series
Both are modeled with smooth, aerodynamic CAD lofts suitable for visualization or engineering workflows.

The N-2130 was:

Indonesia’s first attempt at entering the global jetliner market
A natural evolution of IPTN’s CN-235 and N-250 experience
Designed with contemporary Western aerodynamic standards
But when the 1997 Asian Financial Crisis struck, support for the program collapsed. Despite the aircraft being in an advanced design stage, the N-2130 was cancelled before a prototype was built.

Today, only a few brochure scans, scale models, and concept drawings survive. This project aims to preserve that lost ambition. Wings, nacelles, and proportions that show IPTN’s engineering maturity Reconstructing the aircraft in 3D reveals details the public never saw — subtle loft transitions, nacelle curvature, and aerodynamic geometry that were far ahead for its era. This project is not cool because the N-2130 flew. It’s cool because it almost did.

This aircraft is imagined as:

A tribute to Indonesia’s aerospace ambitions
The entire model is engineered in SolidWorks using true NURBS lofted surfaces, giving it wind-tunnel-grade smoothness and precise aerodynamic form.
Every external surface — wings, fuselage, nacelles, empennage — is crafted using parametric engineering lofts suitable for 3D printing, rendering, CFD study, and RC design.

What You Can Do With These Packs

Depending on the pack you choose, you can:

3D print the aircraft
Build RC laser-cut models
Perform CAD or CFD analysis
Render it in Blender
Create posters, stickers, and merch
Study the engineering form

This product line is divided into clear “factory-floor” production tiers for different users: 3D printers, CAD engineers, RC builders, artists, and hobbyists.

Pack D — Merchandise Art Pack (DXF + DWG + PDF)

Includes:

Clean line-art views:

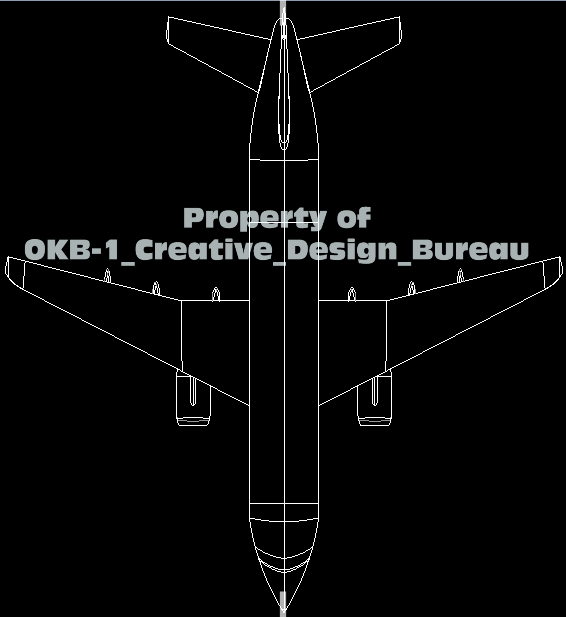

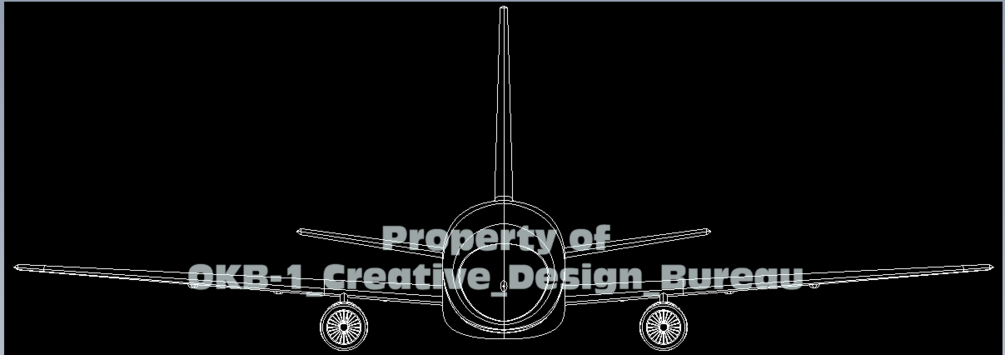

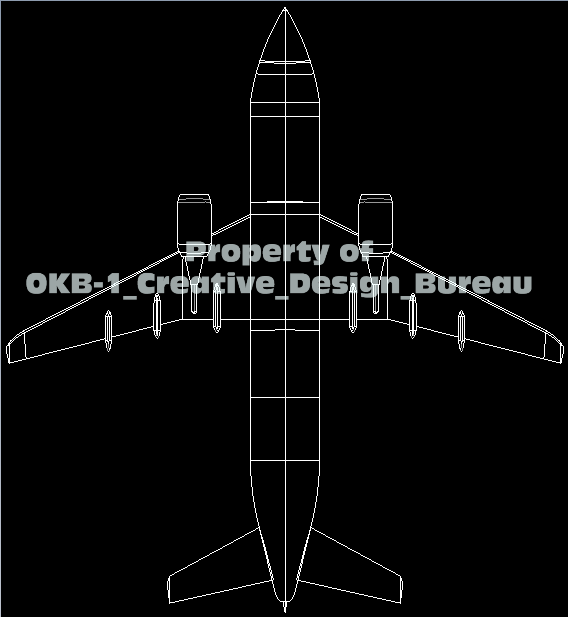

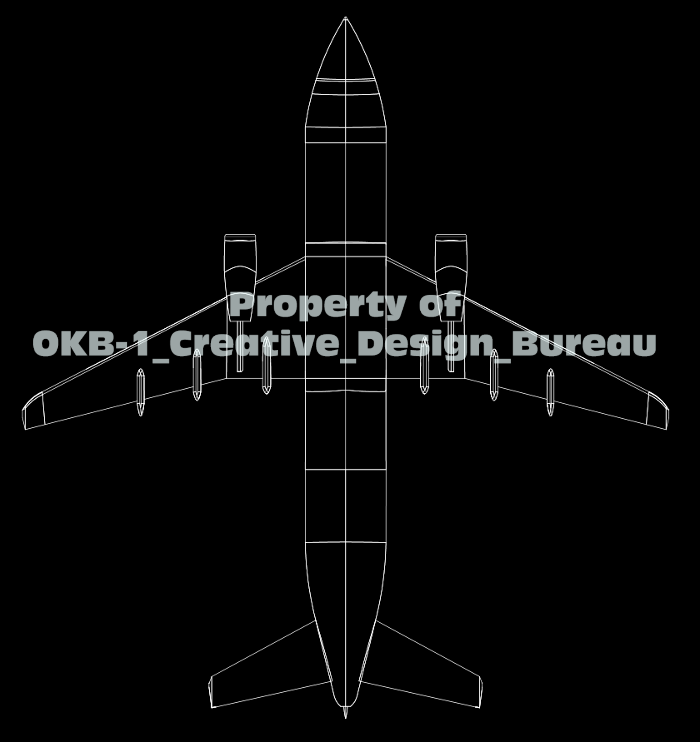

3-side view (top, side, front) + Bonus 1-side view (belly)
Isometric view
Provided in DXF + DWG + PDF

High resolution, ready for:

T-shirt designs
Posters
Stickers
Wallpapers
Classroom material

Perfect for: Artists · Merch stores · Classroom projects · Aviation fans

Pack A — 3D Printing Pack (STL + 3MF Only)

https://creativedesigns840.gumroad.com/l/jcjswy IPTN N-2130 A

https://creativedesigns840.gumroad.com/l/amivn IPTN N-2130 A1

https://creativedesigns840.gumroad.com/l/aqaqb IPTN N-2130 A2

Includes:

High-resolution STL of the aircraft
Engine option:
Pack A1: Single engine option (CFM56) + Custom Aircraft Stands
Pack A2: Single engine option (PW6000) + Custom Aircraft Stands
Pack A: Both engines engine option (CFM56 or PW6000) + Custom Aircraft Stands
Clean watertight mesh suitable for resin or FDM printing
3MF file for layout reference
Aerodynamic, smooth loft surfaces just like wind tunnel models
Ready for slicing (Cura, PrusaSlicer, Bambu Studio, Orca-Slicer)
Optional: scaled versions (1:150, but can be re-sized as 1:72, 1:144, 1:48, etc.)

Perfect for: Collectors · Modelers · 3D printer hobbyists
